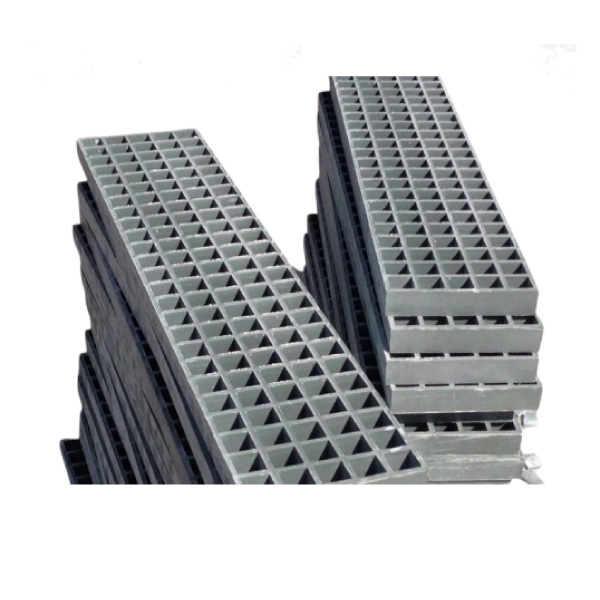

GRP Channel Grating
CtpCam elyaf takviyeli CTP kanal ızgarası — hafif, paslanmaz, kaymaz yüzey.
9 products found
In StockB125
In StockB125
In StockB125
In StockB125
In StockB125
In StockB125
In StockB125
In StockB125
GRP Channel Grating About
CTP kanal ızgarası, cam elyaf takviyeli polyester malzemeden üretilen hafif ve kaymaz bir kanal ızgarası tipidir. Islak zeminlerde kaymaz yüzeyi ve korozyon direnciyle öne çıkar.
- Hafif, paslanmaz, kimyasala dayanıklı
- Kaymaz yüzey — yaya güvenliği
- Yüksek su geçiş kesiti
Polimer kanal sistemleriyle birlikte kullanılır. Teklif alın.
GRP Channel Grating Load Classes (TS EN 124-5)
The correct product is selected according to the traffic load at the installation point. TS EN 124-5 load classes according to the standard:
| Load Class | Test Load | Application Area |
|---|---|---|
| A15 | 1.5 tonnes | Pedestrian and bicycle areas, green areas |
| B125 | 12.5 tonnes | Pavements, car parks, light vehicle traffic |
| C250 | 25 tonnes | Kerb edge, road shoulder, fuel station |
| D400 | 40 tonnes | Streets, roads and heavy vehicle routes |
| E600 | 60 tonnes | Port, logistics, heavy industry site |
Comparison of Drainage Channel Types
| Features | Polymer Channel | Composite Channel | Cast Iron Channel |
|---|---|---|---|
| Body | Polymer concrete | Fiberglass (GRP) | Ductile/gray cast iron |
| Weight | Medium | Very lightweight | Heavy |
| Corrosion resistance | High | Very high | Medium |
| Flow rate (discharge) | High | High | Medium |
| Heavy traffic | Good | Good | Best |
| Ideal use | General infrastructure, parking areas | Chemical/industrial | Port, heavy industry |
Composite vs. Cast Iron Comparison
The key differences between composite (SMC/BMC) products and traditional cast iron/metal products:
| Features | Composite (SMC/BMC) | Cast Iron / Metal |
|---|---|---|
| Corrosion / rust | Rustproof, non-corroding | Risk of rusting |
| Weight | Lightweight (easy installation) | Heavy |
| Theft risk | Low (no scrap value) | High (scrap value) |
| Electrical conductivity | Insulating | Conductive |
| Lifespan / maintenance | Long service life, maintenance-free | Periodic maintenance |
| Load class | A15–E600 (TS EN 124-5) | A15–F900 |
